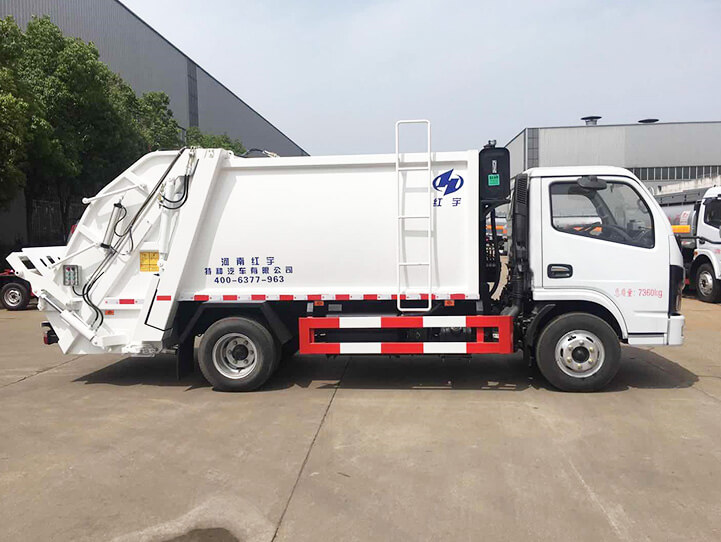

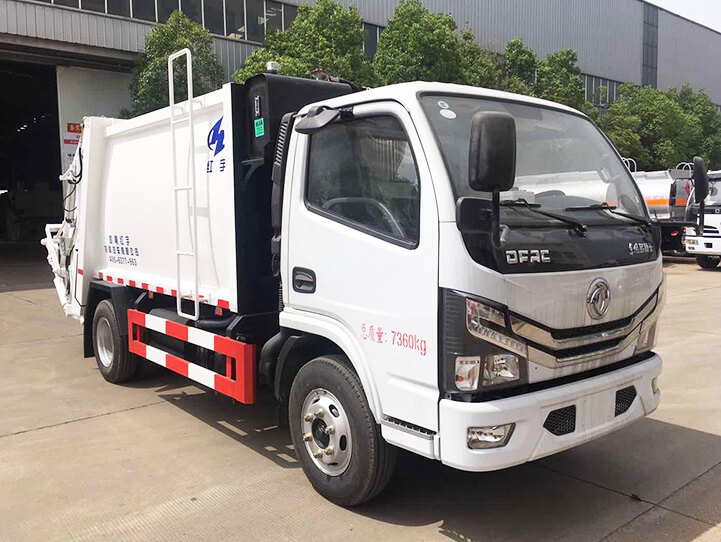

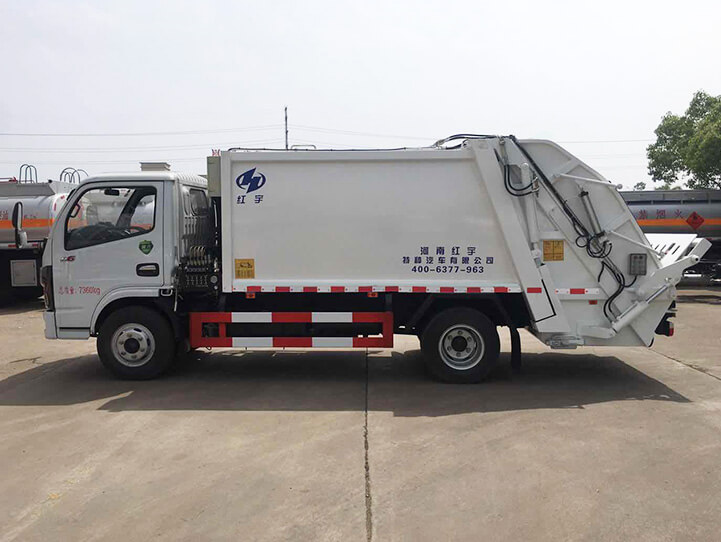

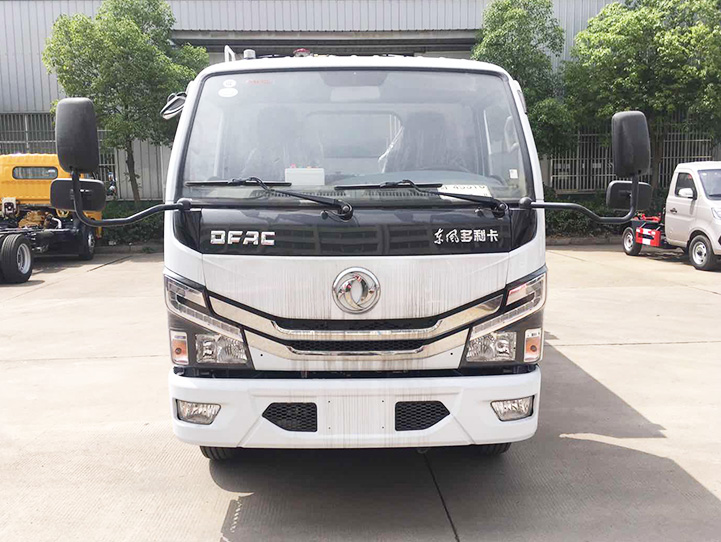

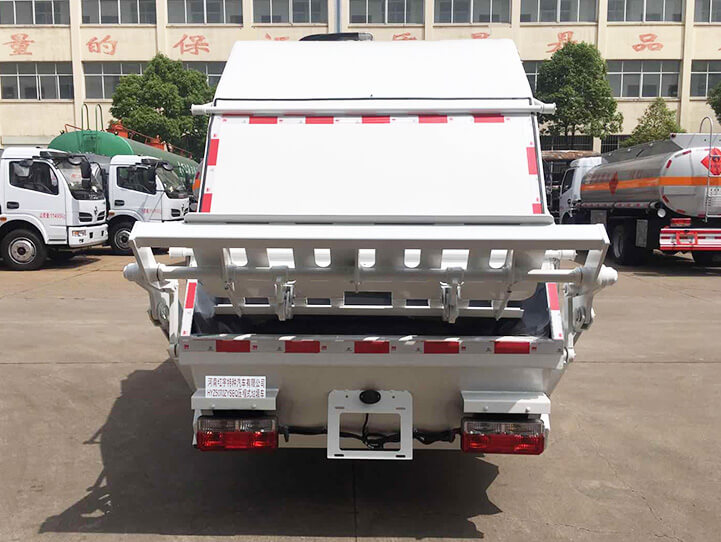

**Model: HYZ5070ZYSEQ**
**An efficient urban waste management solution combining Dongfeng reliability with Hongyu's compression technology**
**Chassis System**
- **Chassis Model**: Dongfeng EQ1075SJ3CDF
- **Engine**: Q23-155E60 (115HP/85kW)
- **Emission**: China VI (Fully complies with Euro 6 standards)
- **Transmission**: 5-speed manual (Automatic optional)
|
Vehicle Model |
HYZ5070ZYSEQ |
|
Gross Mass（kg) |
7360 |
|
Dimensions |
6710,6510x1960x2600 |
|
Chassis Model |
EQ1075SJ3CDF |
|
Engine Model |
Q23-115E60 |
|
Power |
85KW |
|
Load Capacity |
1730 |
|
Emission Standards |
Euro 6(5/4/3) |
- **Compression Ratio**: 5:1 (Standard) | 6:1 (Optional)
- **Effective Volume**: 8-10m³ (Expandable to 12m³)
- **Cycle Time**: ≤100 seconds (Loading-Compaction-Unloading)
- **Operation Pressure**: 18MPa hydraulic system
**Superior Compaction Technology**
- Patent-pending compression mechanism increases waste density by 40% vs conventional models
- Special wear-resistant steel blades (10,000+ cycles lifespan)
**Eco-Friendly Design**
- Triple-sealing system prevents leakage
- Ultra-low noise operation (<72dB)
**Customization Options**
- Right-hand drive configuration
- Cold-weather package (-30°C operation)
- Special body dimensions (Width: 2.1m-2.5m adjustable)
