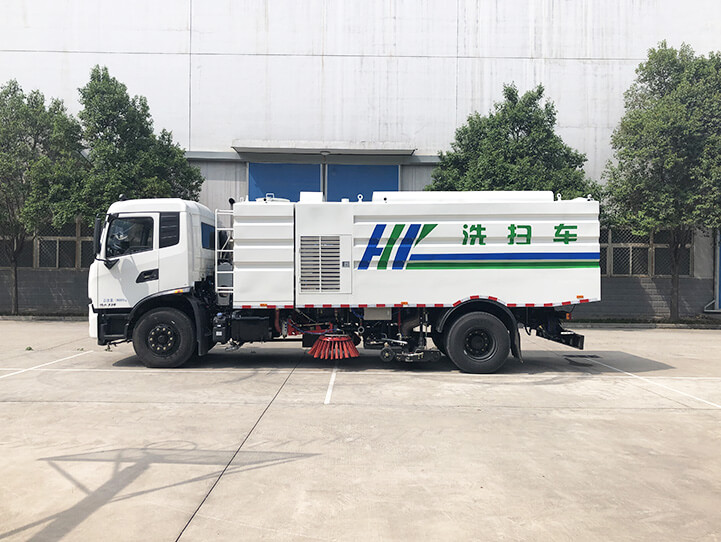

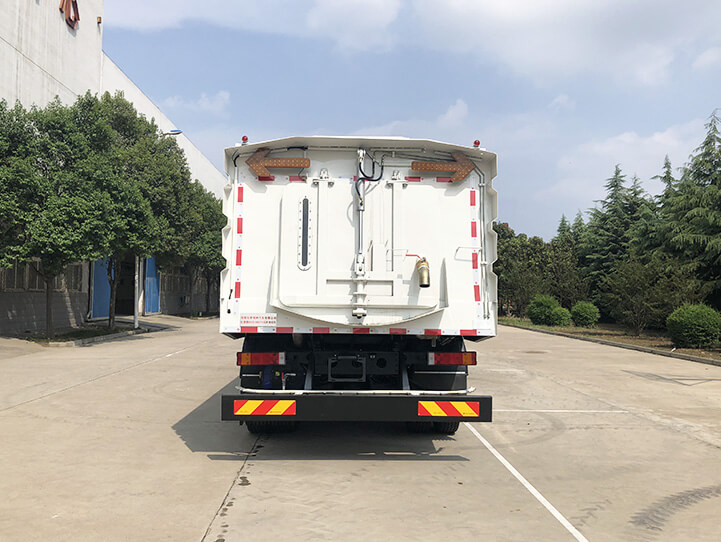

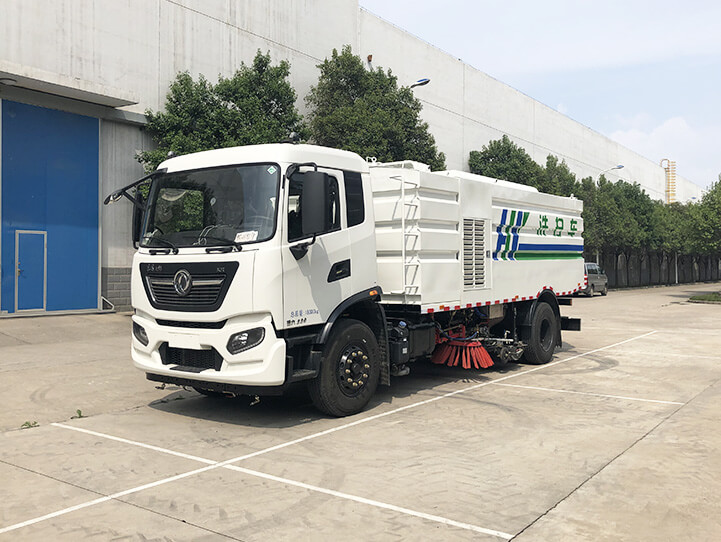

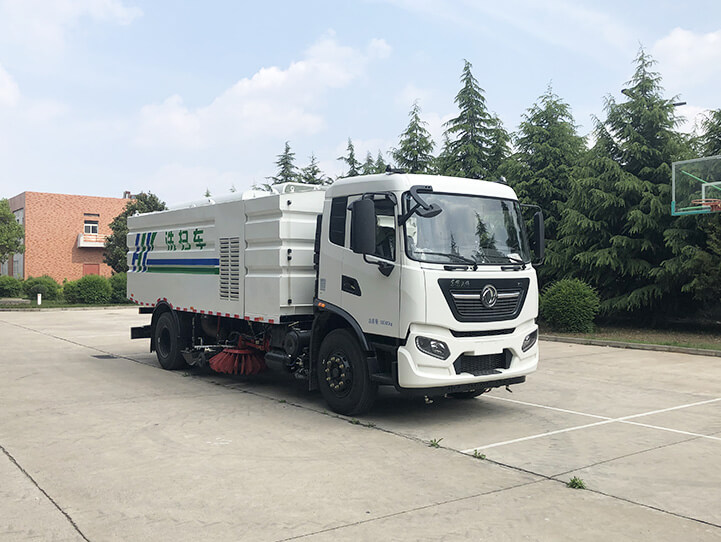

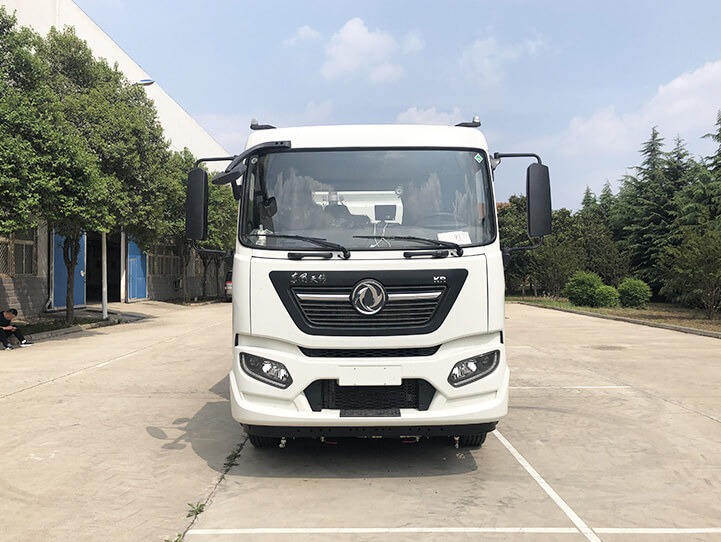

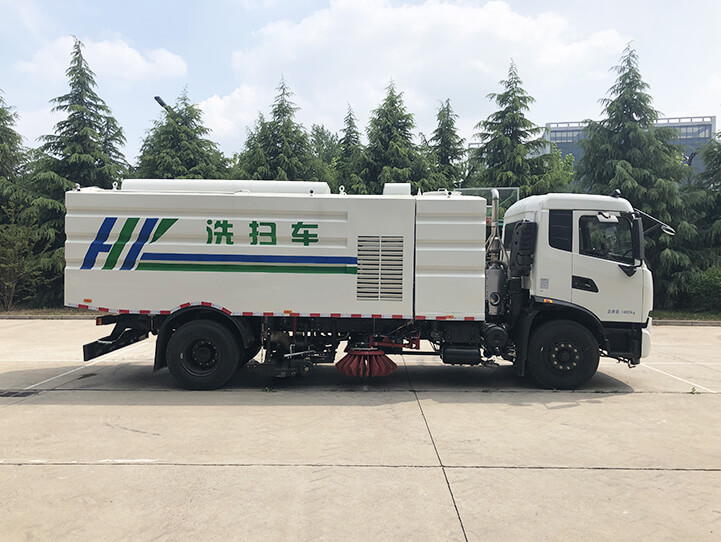

HYZ5180TXSDF

Hongyu brand road sweeper is a road sweeper developed for highways, urban roads, squares and airports. The vehicle is technologically advanced and combines the characteristics of traditional road sweepers and high-pressure cleaning vehicles. It has the functions of road cleaning, road sweeping, low-pressure flushing, and sewage recycling. In addition, a low-pressure water pump is installed to achieve low-pressure flushing operations like a sprinkler truck. This vehicle is multi-purpose and can independently achieve multiple operation modes such as dry sweeping, wet sweeping, vacuuming, washing and sweeping, and high-pressure cleaning.

1. The working device adopts the layout of "two central sweeping discs + central wide suction nozzle + built-in high-pressure main spray rod + left and right high-pressure side spray rods".

2. The clean water tank and garbage bin are made of integral stainless steel and will never rust.

3. One-button operation intelligent electronic control system. When the operation starts and stops, the auxiliary engine speed control, suction nozzle lifting, sweeping disc retraction and extension, left and right spray rod retraction and extension and other working devices are all controlled by one button, which is easy to operate and greatly reduces the possibility of misoperation. There are multiple operation modes to choose from. The system has set 6 operation modes: full washing and sweeping, left washing and sweeping, right washing and sweeping, full washing, left washing, and right washing. Users can choose the appropriate operation mode to operate according to the needs of the operation. After the operation mode is selected, the operation is started with one button, and all the mechanisms required to participate in the operation will automatically extend and operate in the prescribed order. When the operation needs to be stopped, one button is stopped, and all the operating machinery in the work will automatically stop and retract to the original state in the prescribed order.

4. PLC programming and intelligent control system are adopted, and electric, hydraulic and gas are centrally controlled. The driver can complete various actions in the cab.

5. Multiple automatic protection devices. This washing and sweeping vehicle is equipped with automatic protection devices such as water shortage in the clean water tank, full water in the garbage bin, anti-overturning unloading of the garbage bin when the rear door is opened, anti-engagement of the pneumatic gear clutch when the auxiliary engine is running, anti-protection support rod is not lowered to retract the overturned garbage bin, and anti-hydraulic oil leakage, etc., to protect the washing and sweeping vehicle from damage in specific working conditions such as water shortage, full water, and misoperation.
