- **Chassis**: Dongfeng Tianjin premium chassis, China VI emission (Euro 6 compliant)
- **Capacity**: 19.5m³ compaction body with 4:1 compression ratio (25% more efficient)
- **Powertrain**: Dongfeng Cummins/Yuchai engine (210-240HP), fuel-efficient with high torque
- **Chassis**: Dongfeng Tianjin premium chassis, China VI emission (Euro 6 compliant)
- **Capacity**: 19.5m³ compaction body with 4:1 compression ratio (25% more efficient)
- **Powertrain**: Dongfeng Cummins/Yuchai engine (210-240HP), fuel-efficient with high torque
- **Smart Operation**: Hydraulic auto-docking system (±3cm precision)
- **Eco-Design**: Leak-proof wastewater tank + high-pressure sealing system
|
Vehicle Model |

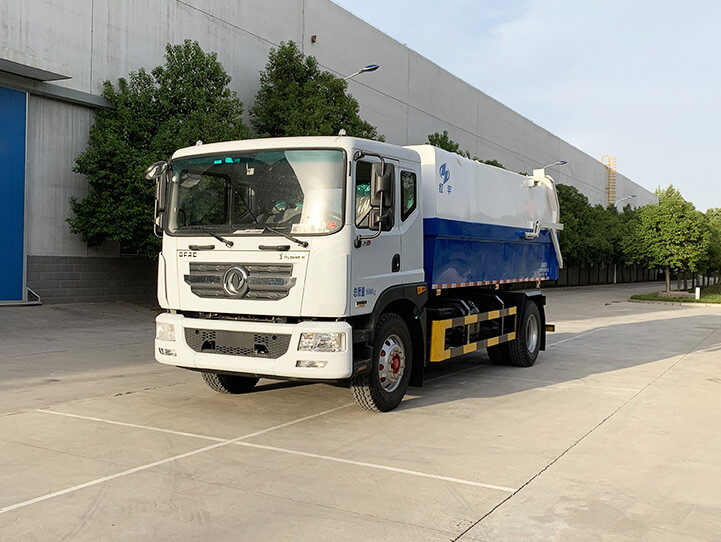

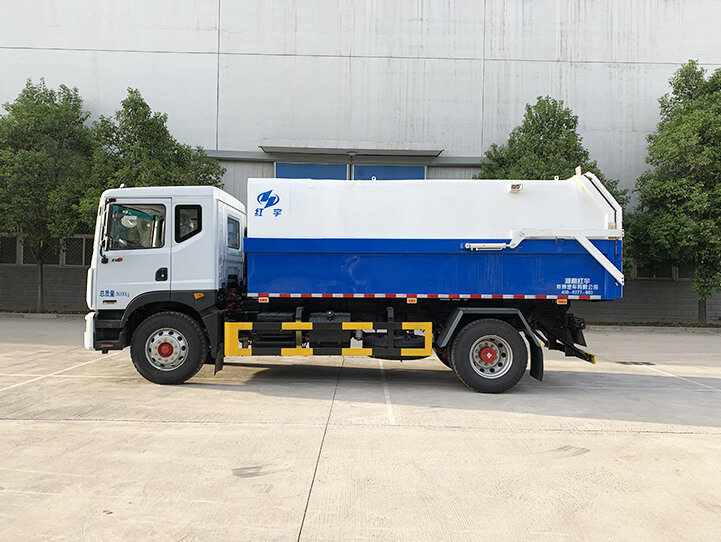

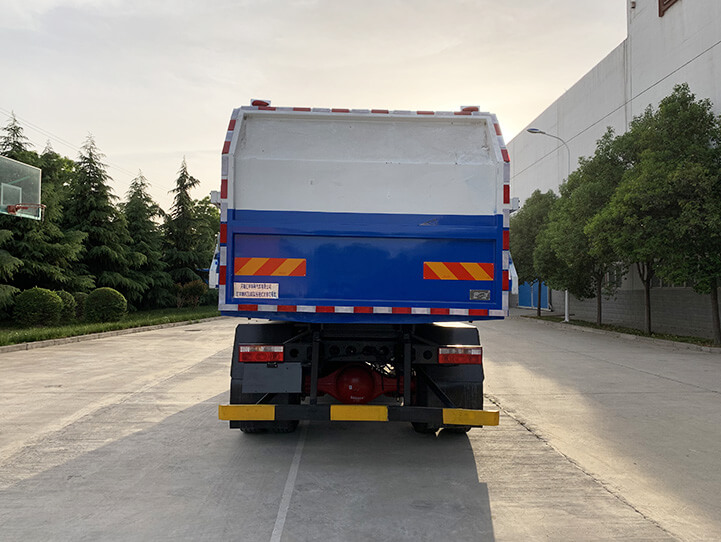

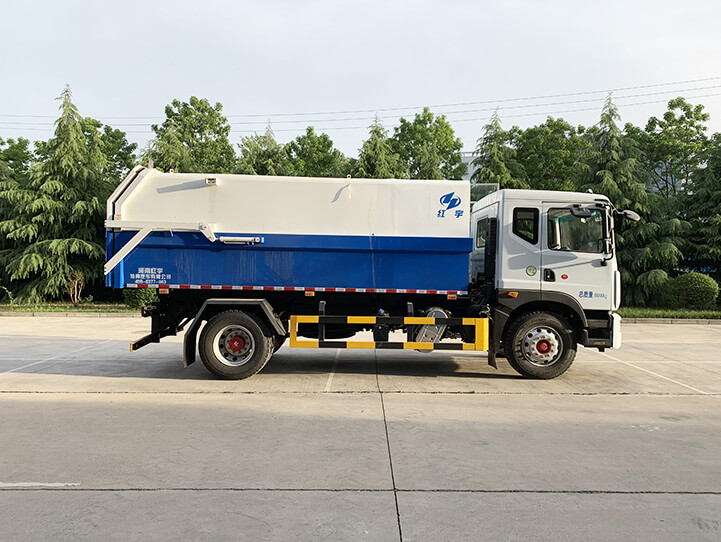

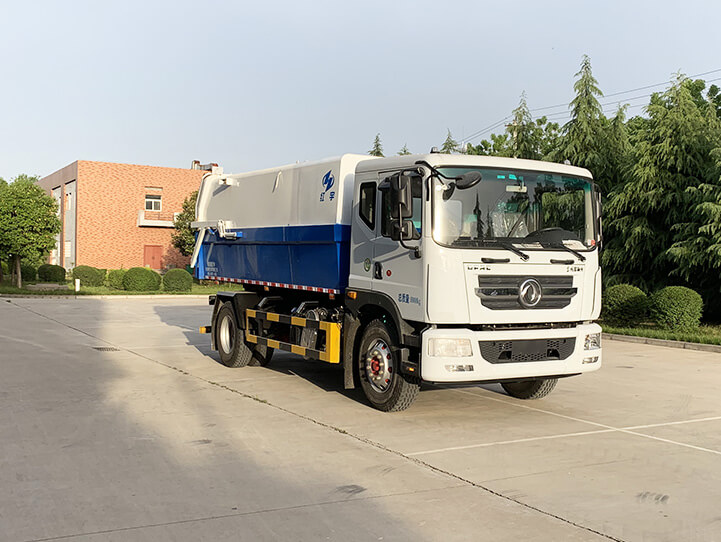

HYZ5180ZDJ |
|
Chassis Model |
Dongfeng EQ1185LJ9CDE |
|
Engine Model |
YCS04200-68 B6.2NS6B210 |
|
Engine Power (kW) |
147,154 |
|
Engine Displacement |
4156.6200 |
|
Fuel Type |
Diesel |
|
Dimensions (mm) |
6670,7620x2500X3100 |
|
Gross Mass (kg) |
18000 |
|
Curb Weight (kg) |
7580，7050 |
|
Rated Load Capacity (kg) |
10290，10225，10820，10755 |
|
Box Volume (cbm) |
19.5 |
|
Approach/Departure Angles |
19/18 |
|
Front/Rear Overhang(mm) |
1260/1860，1260/1460 |
|
Wheelbase (mm) |
3950.4500.4700,5000,5300,5600 |
|
Maximum Speed (km/h) |
105 |
|
Tire Size |
295/80R22.5 |
|
Unloading Cycle Time |
60s |
|
Emission Standards |
Euro 6(5/4/3) |
|
Dock Height (mm) |
1450 |
**Municipal waste transfer stations
**Industrial park & community waste collection
**Medium-sized waste processing centers
