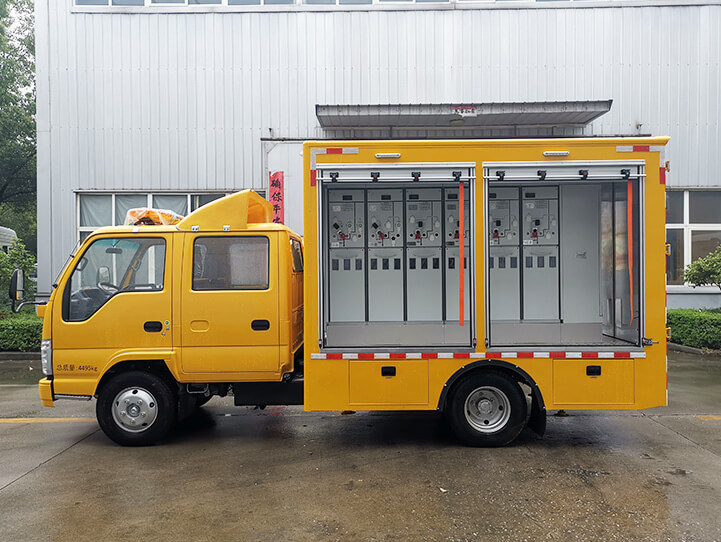

**Integrated Power Distribution System** - Combines ring main unit, dry-type transformer, and LV/HV switchgear in one vehicle
**Exceptional Mobility** - Robust off-road chassis adapts to challenging terrains
**Low-Noise Operation** - Soundproof cabin design for urban environment compliance
**Rapid Deployment** - Hydraulic stabilization system enables fast setup (<15 minutes)
**Comprehensive Safety** - Integrated cable management + rearview camera system
**Core Components:**
**Base Vehicle**: Customizable Class II chassis (4x4/6x6 options)
**Power System**:
- Ring Main Unit (RMU): 12-24kV
- Dry-Type Transformer: 200-2000kVA
- LV Distribution Panel: 400-6300A
**Cable Management**:
- HV/LV cable reels with automatic winding
- 50-300m cable capacity (customizable)
**Ancillary Systems**:
- Hydraulic outriggers (4-point stabilization)
- 360° monitoring system
- Tool storage compartments
|

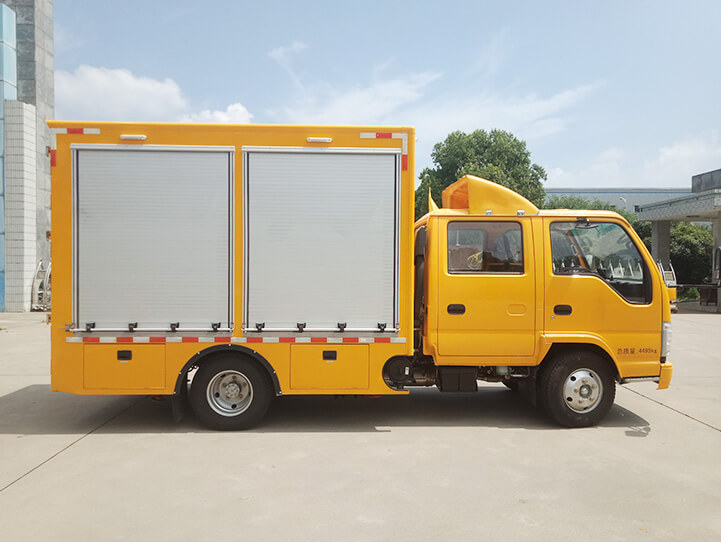

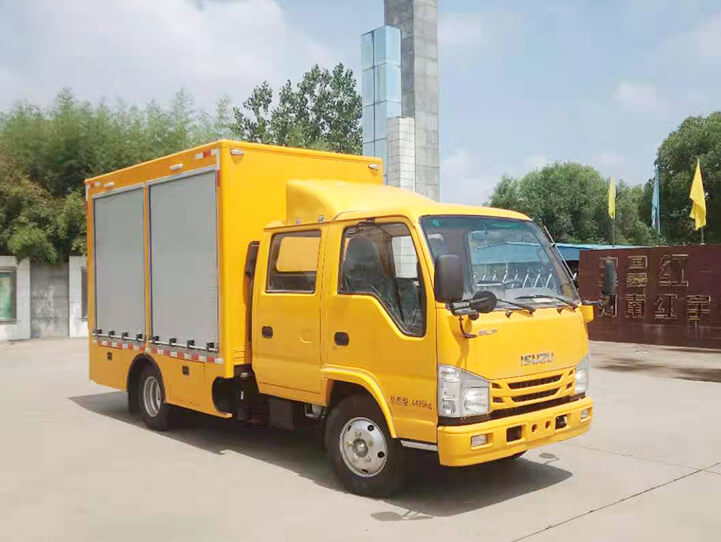

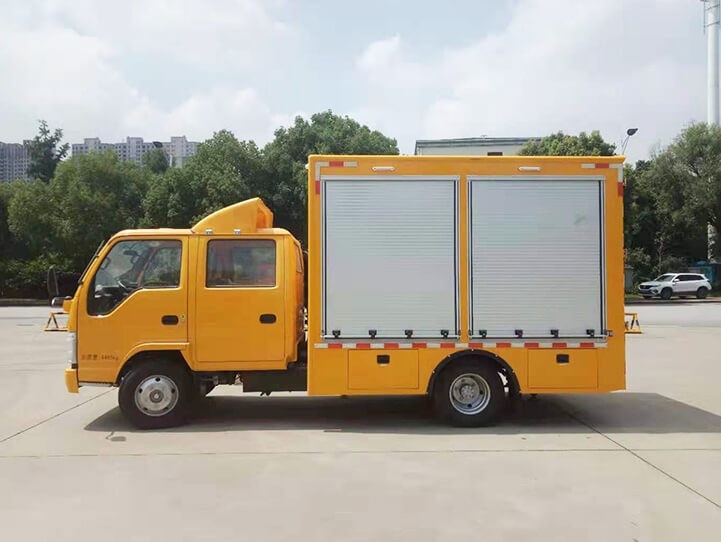

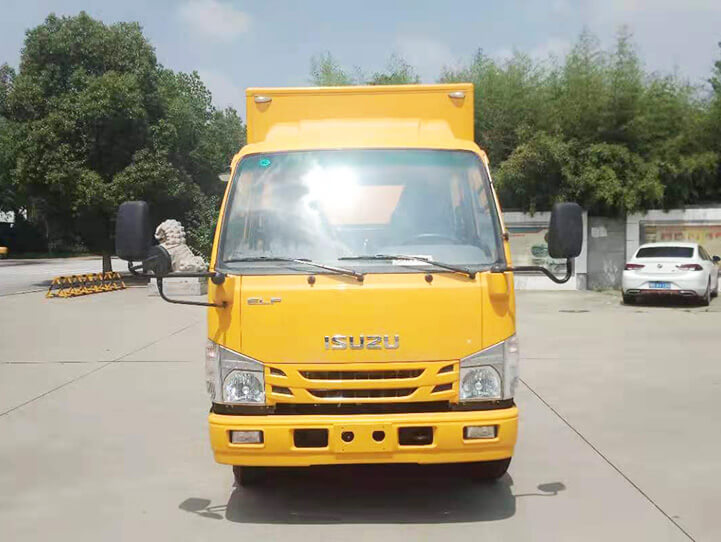

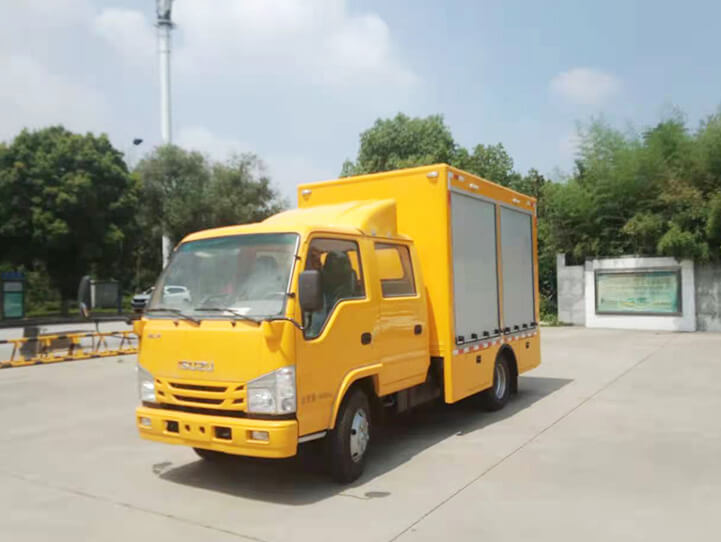

Vehicle Model |
HYZ5040XGCQL |
|
Gross Mass (kg) |
4495 |
|
External Dimensions (mm) |
5995 × 1980 × 2700, 2800, 2930 |
|
Chassis |
Qingling QL1040BUHWY |
|
Engine Model |
4KH1CN6LB |
|
Power (kW) |
88 kW |
|
Generator Power Range (kW) |
20-30 kW |
|
Emission Standard |
Euro6(5/4/3) |
Noise Level: ≤65dB @ 7m
Setup Time: 10-15 minutes
Operating Temp: -30°C to +50°C
Compliance: CE, ISO 9001, CCC
**Emergency Power Scenarios:**
**Grid failure restoration
**Disaster relief operations
**Temporary power for construction sites
**Regular Operations:**
**Mobile substation for utility companies
**Power maintenance for oil/gas fields
**Backup power for data centers **
**30+ Years** in special vehicle manufacturing
**500+** mobile substations deployed globally
**Custom solutions** for voltage levels 12kV-40.5kV
**24/7 technical support** with multi-language service
**Left/right hand drive configurations
**Tropicalized & arctic packages available
**Compliance with IEC, ANSI, and local standards
