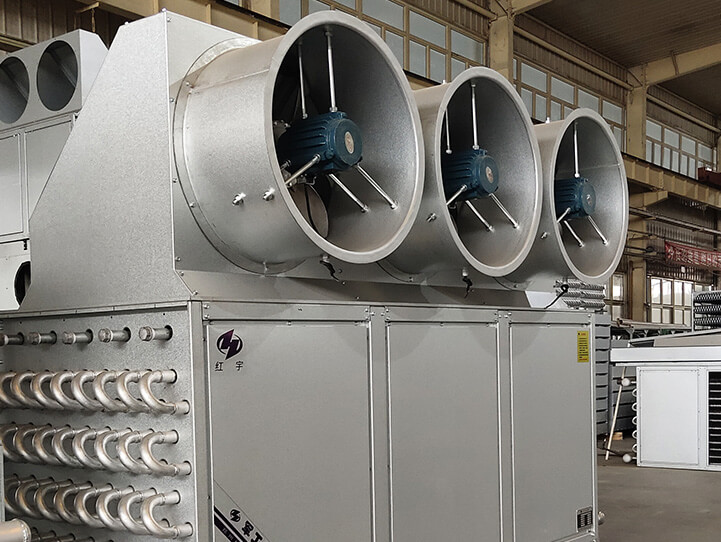

Floor-standing curved top cover side-blowing evaporator

Floor-standing curved top cover side-blowing evaporator

Arc-shaped aerodynamic top cover + 45° wide-angle side blowing technology

Breakthrough combination of industrial aesthetics and fluid mechanics design to achieve:

Air flow loss is reduced by 40% - Air supply distance is increased to 25 meters

Unique arc-shaped top cover eliminates cold bridge condensation -Strong adaptability to humidity environment

Send Email Get A Quote

Core technical parameters
System module	Technical indicators
Basic performance
Model	HYH-ARC series (explosion-proof/corrosion-proof/clean type optional)
Cooling capacity	18kW-350kW (modular combination)
Energy efficiency ratio	≥4.2 (ARI standard working condition)
Airflow organization
Air supply angle	45° adjustable fan-shaped air supply (electric swing blade optional)
Air volume	6000-35000m³/h (stepless frequency conversion adjustment)
Jet distance	Standard type 18m/Boost type 25m
Structural design
Top cover material	304 stainless steel one-time stamping (R1500mm arc radius)

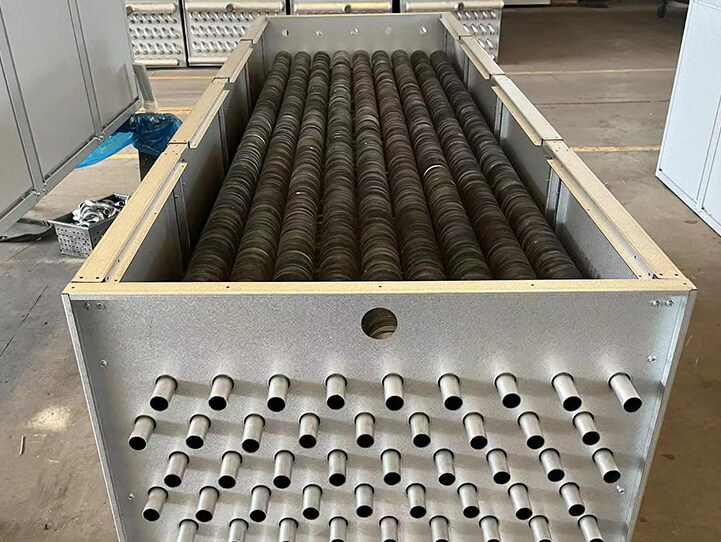

Heat exchanger	Staggered copper tube arrangement + nano antibacterial fins (titanium tube anti-corrosion version optional)
Intelligent control
Control system	Hongyu iCool Pro 3.0 (supports Modbus/Profibus communication)
Monitoring parameters	Real-time display: wind pressure/pipe temperature/frost amount/energy consumption curve

Advantage

Improved space utilization

• The curved top cover reduces the invalid space on the upper part of the equipment by 30%

• Side blowing + top return air design, the wall installation distance is only 400mm

Special environment adaptation

- Seafood market: standard anti-salt spray coating

- Pharmaceutical cold storage: GMP grade stainless steel liner optional

- High temperature workshop: 65℃ resistant motor

Industry customized solutions

Logistics cold chain version

• -30℃ deep cooling configuration

• Integrated defrost water recovery tank

Supermarket display version

• Invisible air outlet design

• Food grade PE protective cover

Industrial special version

• Ex dⅡCT6 explosion-proof certification

• Pickling and phosphating anti-corrosion treatment
